Mastercool – Cordless Vacuum Pump – 18V, 1.5 CFM, 2-Stage, 5 Amp

Mastercool - Cordless Vacuum Pump - 18V, 1.5 CFM, 2-Stage, 5 Amp

Brief Overview:

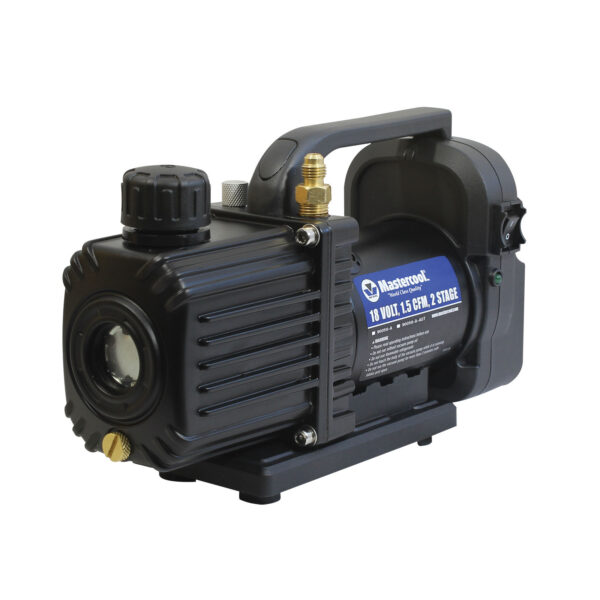

The Mastercool Cordless Vacuum Pump (Part/Code: MC90058-A) is a high-performance, portable pump designed for HVAC/R professionals. With its 18V lithium-ion rechargeable battery and 2-stage design, this pump provides fast and reliable vacuuming in air conditioning and refrigeration systems. It features a powerful motor, an oil-mist free exhaust port, and a robust construction that ensures long-lasting performance even in high-temperature conditions.

Key Features:

• Oil Mist-Free Exhaust – Prevents oil contamination in the air exhaust for clean operation.

• Ergonomic Sure-Grip Handle – Provides superior comfort and portability.

• Reinforced Base – Ensures shock resistance for durability in the field.

• High Vacuum Performance – Ultimate vacuum down to 15 microns (3 Pa) for thorough evacuations.

• Self-Calibration – Easy oil maintenance with accessible drain port and sight glass.

• Versatile – Includes an adapter sleeve for compatibility with Mastercool batteries.

Specifications:

• Stages: 2

• Free Air Displacement: 1.5 CFM (42-35 l/min at 60-50 Hz)

• Motor: DC 18V, 90W

• Ultimate Vacuum: 15 microns (3 Pa)

• Oil Capacity: 3.5 oz (105 ml)

• Dimensions: 9.9 x 3.7 x 6.1 inches (252 x 94 x 155 mm)

• Net Weight: 7.9 lb (3.6 kg)

• Battery: Li-ion 18V 5.0 Ah

• Battery Charger: Input: 100-240 V, 50-60 Hz, 73 W / Output: 18V/14.4V 3A

• Standard Package: 18V cordless vacuum pump, 1/4” SAE port, rechargeable battery, adapter sleeve, and standard 110/220V battery charger.

Available Options:

• MC90058-A – Cordless vacuum pump without battery and adapter sleeve.

• 90058-5A – Complete kit with pump, battery, adapter sleeve, and charger.

• 90058-BAT-KT-5A – Mastercool rechargeable battery and adapter sleeve.

• 90058-CH-AUS – 220V Australia battery charger.

Optional Accessories:

• 90058-SL-MC – Adapter sleeve for use with Mastercool batteriescordless vacuum pump
