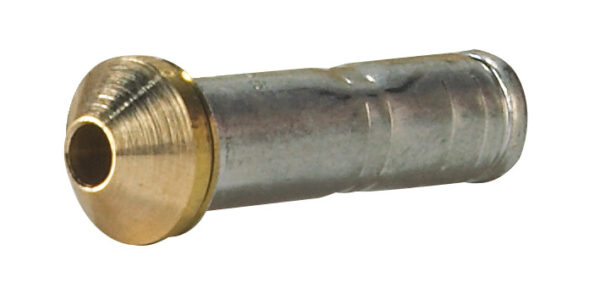

Danfoss - Orifice T2 Series - Refrigerant Metering Insert
Brief Overview
The Danfoss Orifice T2 Series provides precise refrigerant flow control when paired with compatible T2/TE2 thermostatic expansion valve (TXV) bodies. These interchangeable orifices are essential for matching system capacity and refrigerant requirements in HVAC and refrigeration systems using R134A or R404A. Designed for flexibility and performance, the orifices allow technicians to fine-tune system operation based on cooling loads and application specifications.
Ideal for commercial fridges, cool rooms, and restoration projects involving evaporator optimisation, this range covers capacities from 0.4 kW to 10.5 kW.
✅ Key Features
-
✅ Wide capacity range for R134A and R404A systems
-
✅ Compatible with Danfoss T2/TE2 valve bodies
-
✅ Simple installation and easy interchangeability
-
✅ Allows system optimisation based on cooling capacity
-
✅ Trusted quality from Danfoss for refrigeration professionals
Specifications
Orifice Variants & Approximate Capacities:
| Model | Orifice | R134A Capacity (kW) | R404A Capacity (kW) |
|---|---|---|---|
| DANOR0X | 0X | 0.4 | 0.38 |
| DANOR00 | 0 | 0.9 | 0.7 |
| DANOR01 | 1 | 1.8 | 1.6 |
| DANOR02 | 2 | 2.6 | 2.1 |
| DANOR03 | 3 | 4.6 | 4.2 |
| DANOR04 | 4 | 6.7 | 6.0 |
| DANOR05 | 5 | 8.6 | 7.7 |
| DANOR06 | 6 | 10.5 | 9.1 |
Refrigerant Compatibility: R134A, R404A
Application: Commercial refrigeration, HVAC systems, restoration servicing
Series: T2 / TE2
Available Pack Sizes/Contents
-
Individual orifice insert – single unit packaging
-
Compatible with Danfoss T2/TE2 TX Valve bodies
-
