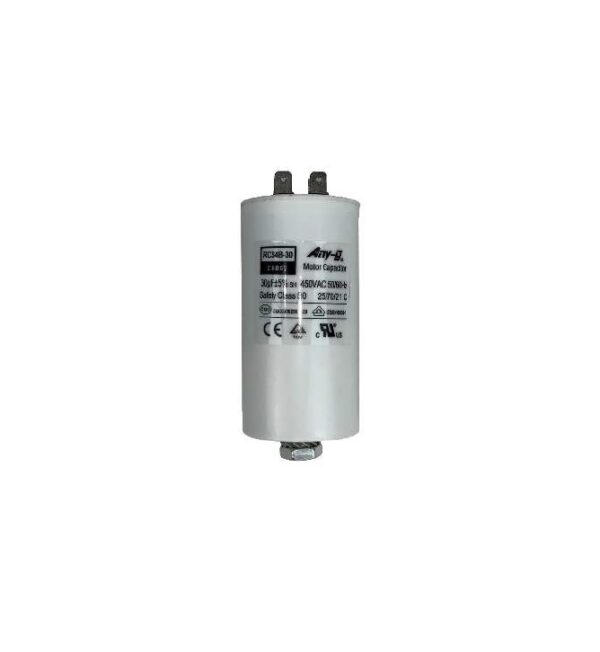

AllControls – HYRCS4B Series Plastic Run Capacitors – Motor Start/Run Capacitor

AllControls - HYRCS4B Series Plastic Run Capacitors - Motor Start/Run Capacitor

The AllControls HYRCS4B Series Plastic Run Capacitors are engineered to provide reliable, efficient motor starting and running performance across a wide range of HVAC and refrigeration systems. Designed with a fixed 8M bolt mount, these capacitors ensure secure installation in even the most demanding environments.

Manufactured with P0 Class safety protection, the HYRCS4B series offers voltage ratings up to 450VAC and a wide capacitance range from 1 to 80 microfarads (MFD), making them suitable for single-phase motors in compressors, fans, and blowers. Their plastic construction makes them durable, lightweight, and resistant to corrosion.

Ideal for use in air conditioning units, refrigerators, commercial HVAC systems, and other electrical appliances requiring stable phase shift and motor performance.

✅ Key Features

• ✅ Wide Capacitance Range – From 1 to 80 MFD to suit various motor specs

• ✅ High Voltage Rating – Rated at 450VAC for robust performance

• ✅ Fixed 8M Bolt Mount – Ensures secure and standard installation

• ✅ Durable Plastic Body – Lightweight and corrosion resistant

• ✅ P0 Class Safety Protection – Designed for safe, long-lasting operation

Specifications

• Capacitance Range: 1 µF to 80 µF

• Voltage Rating: 450VAC

• Safety Protection: P0 Class

• Mounting: Fixed 8M Bolt

• Body Material: Plastic

• Application: Motor run/start (compressors, blowers, fans)

Available Variants (MFD Ratings)

• HYRCS4B-1 (1 MFD)

• HYRCS4B-2 (2 MFD)

• HYRCS4B-3 (3 MFD)

• ...

• HYRCS4B-80 (80 MFD)

Note: Each variant sold as a single unit (EA 1).
