Water Damage Restoration Master Kit

CREATE VISUAL MOISTURE MAPS AND REPORTS WITH TRAMEX METERS APP

The Tramex Water Damage Restoration Master Kit is the ultimate kit for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.

Walls and floors

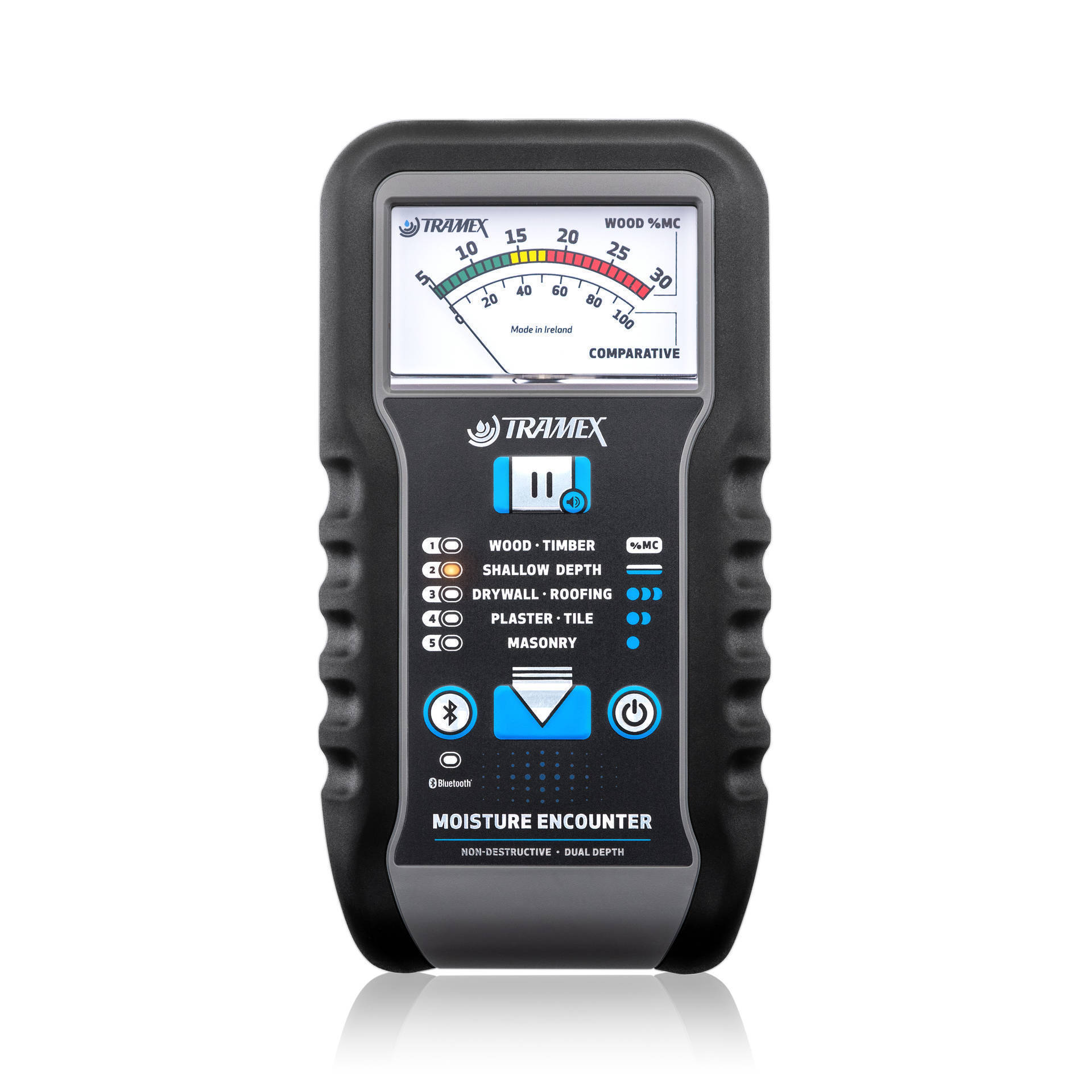

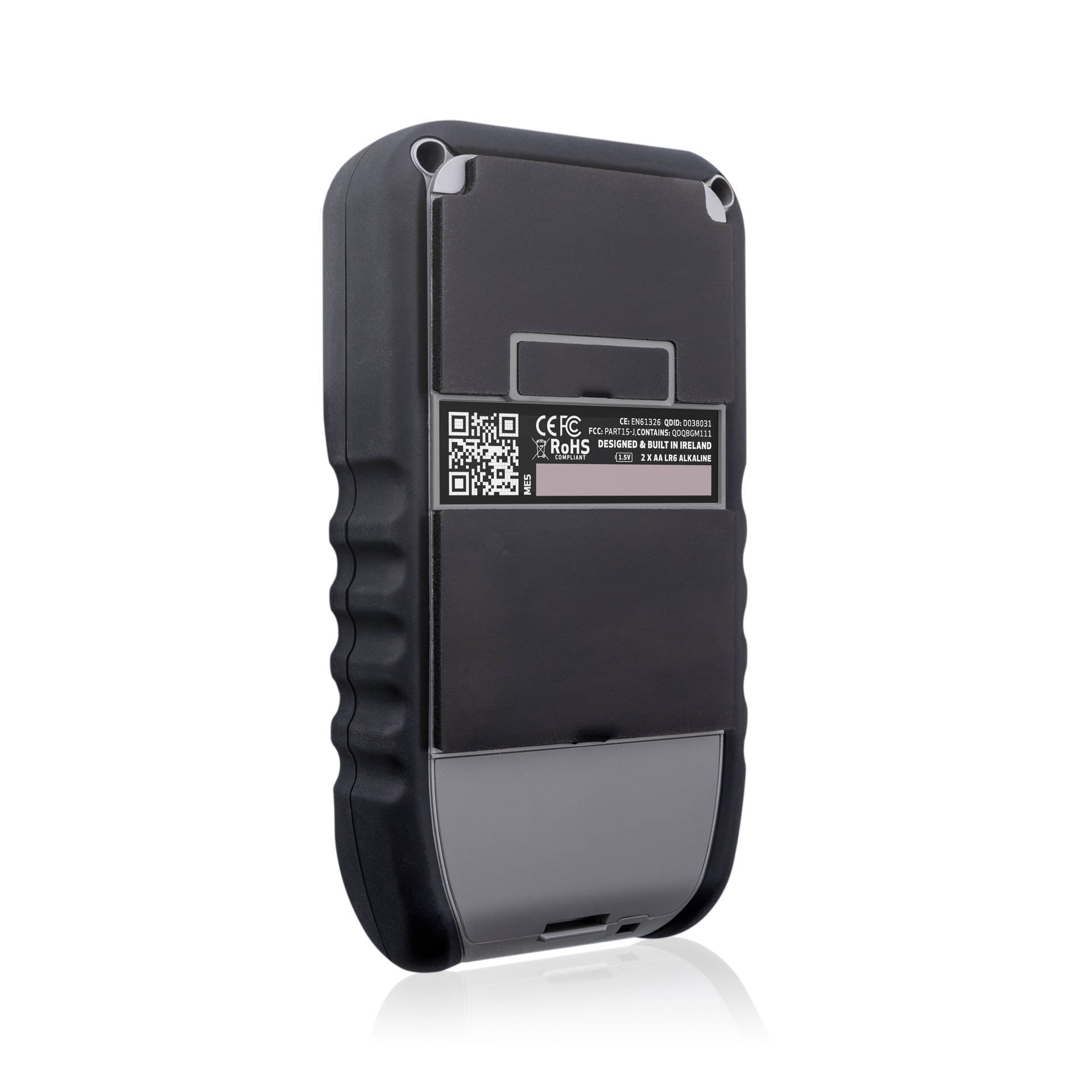

Featuring the Tramex ME5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, resilient flooring, laminates and roofing. The ME5 has a dual-depth feature to allow for the elimination of substrate influence on readings.

Concrete

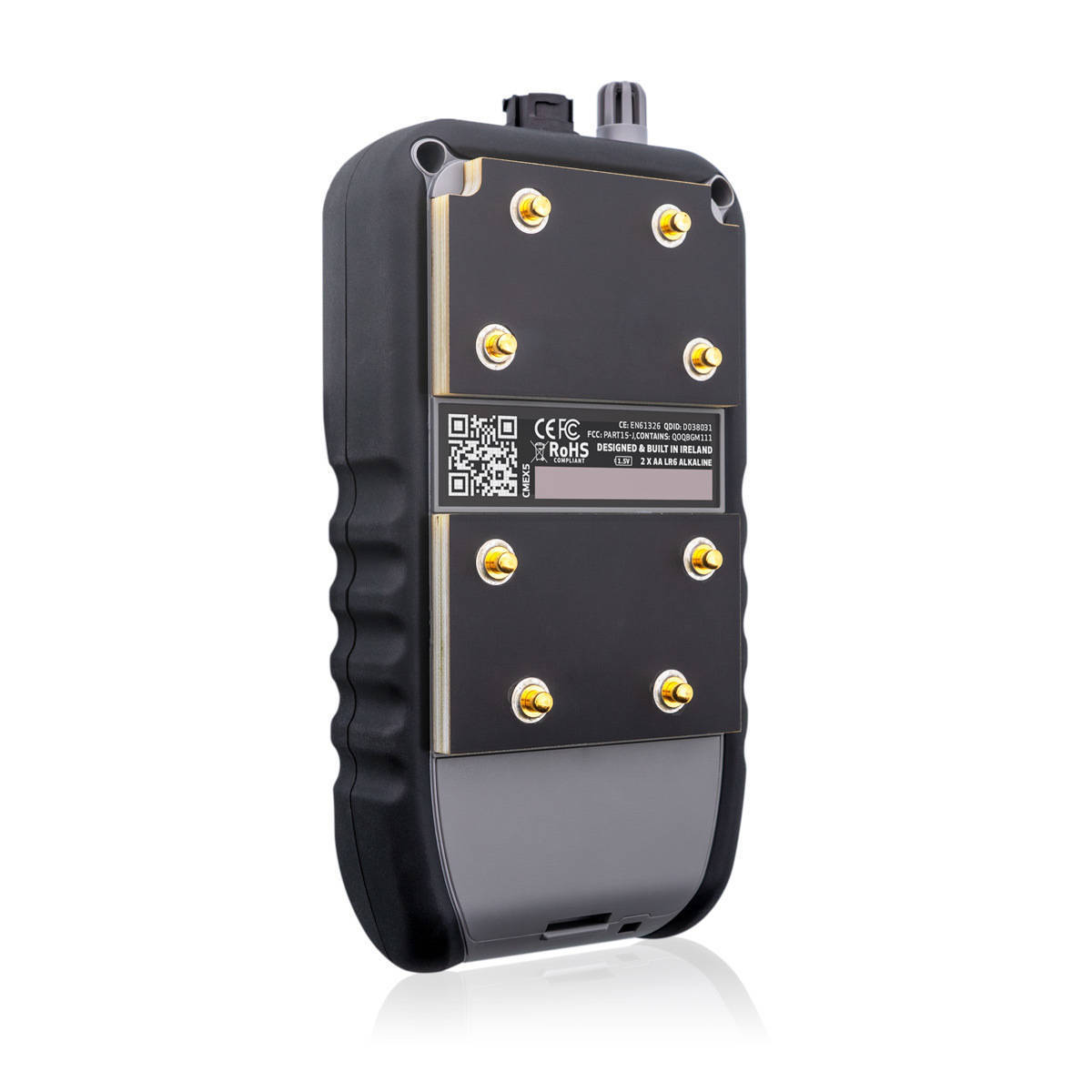

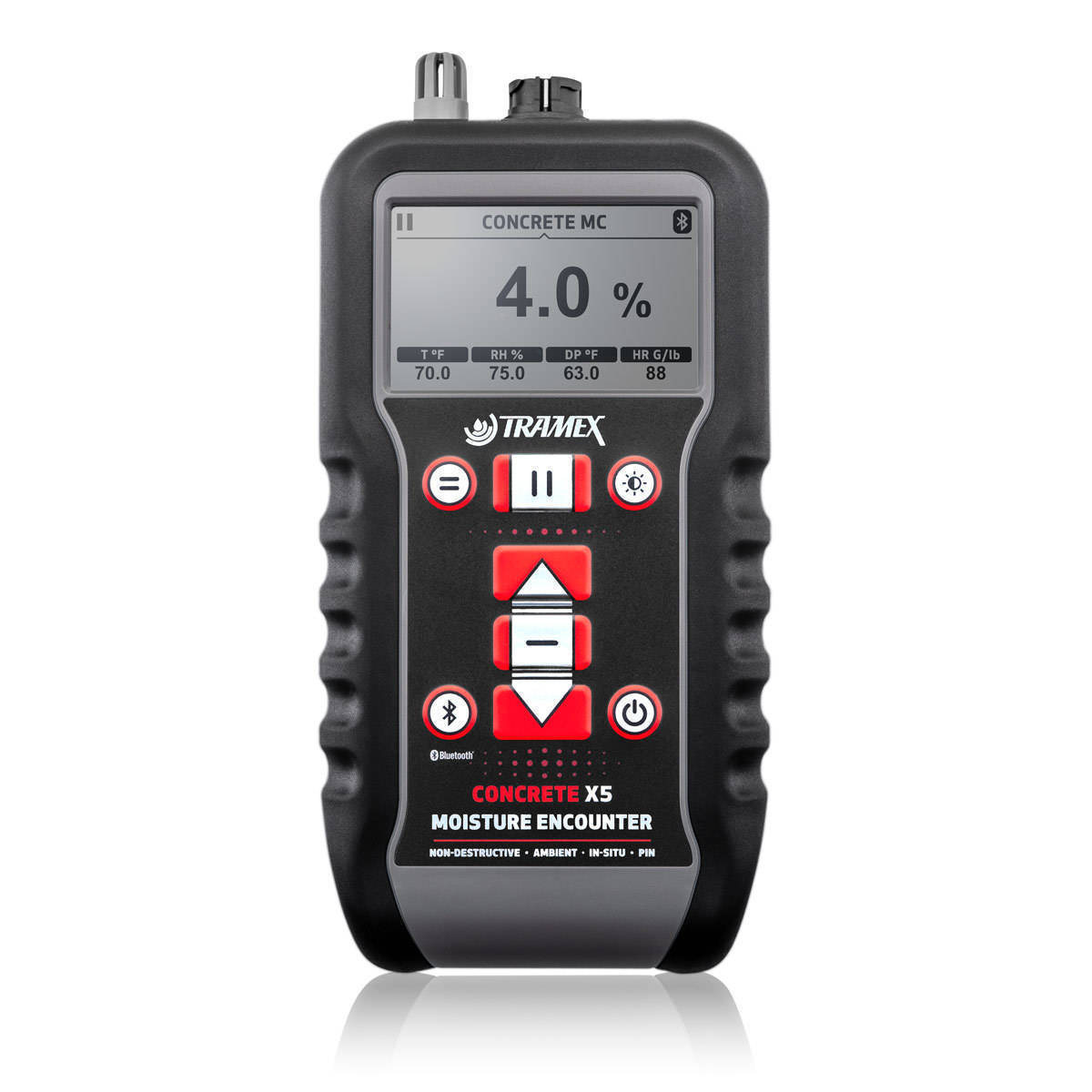

The Tramex CMEX5 digital concrete moisture meter for non-destructive quantitative moisture content measurement using Gravimetric testing as a baseline, comparative testing of concrete and ambient conditions measurement. The CMEX5 incorporates a bayonet plug-in port for the heavy-duty pin-probe to measure moisture content in wood or WME in other building materials as well as reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete, building materials, structures and air spaces.

Ambient conditions

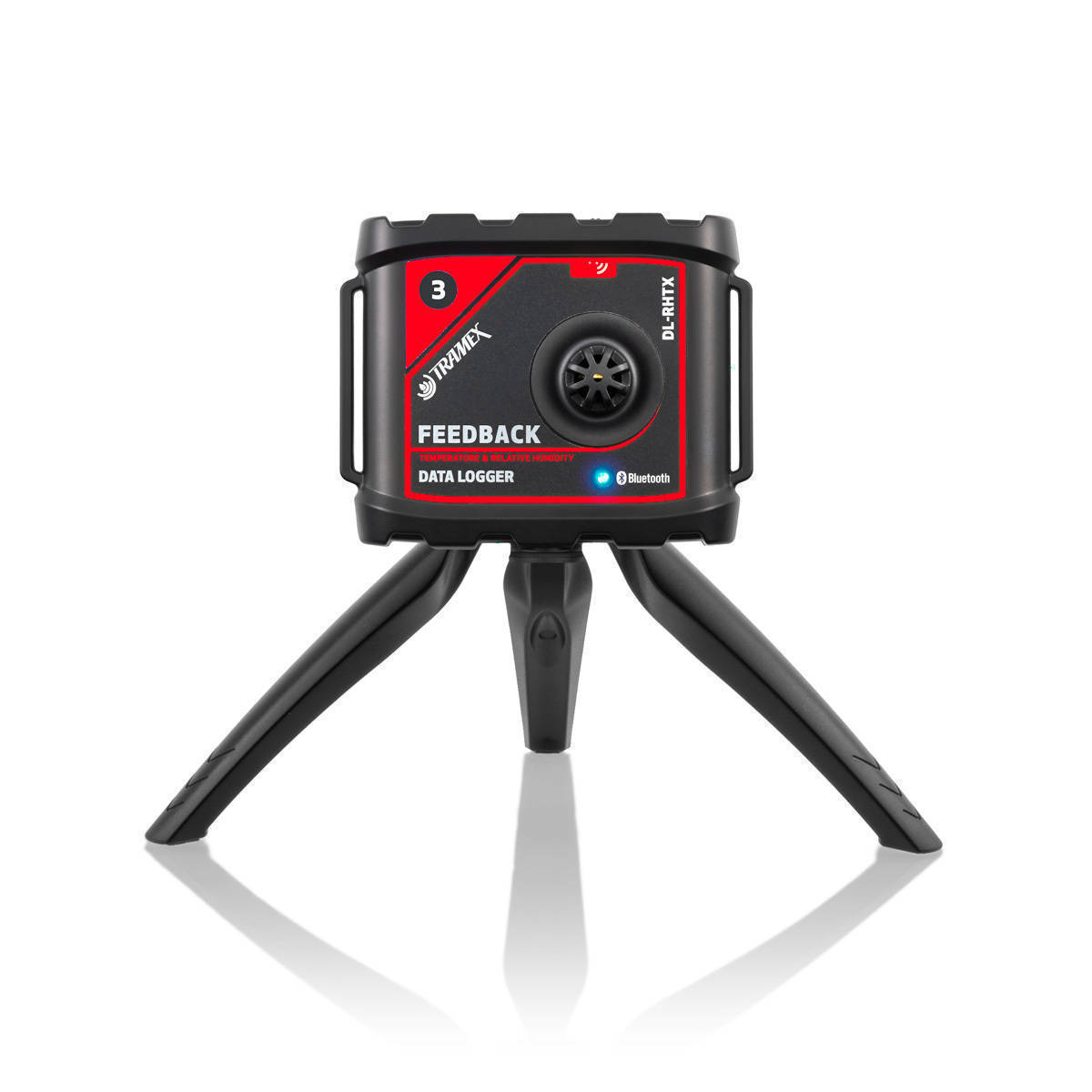

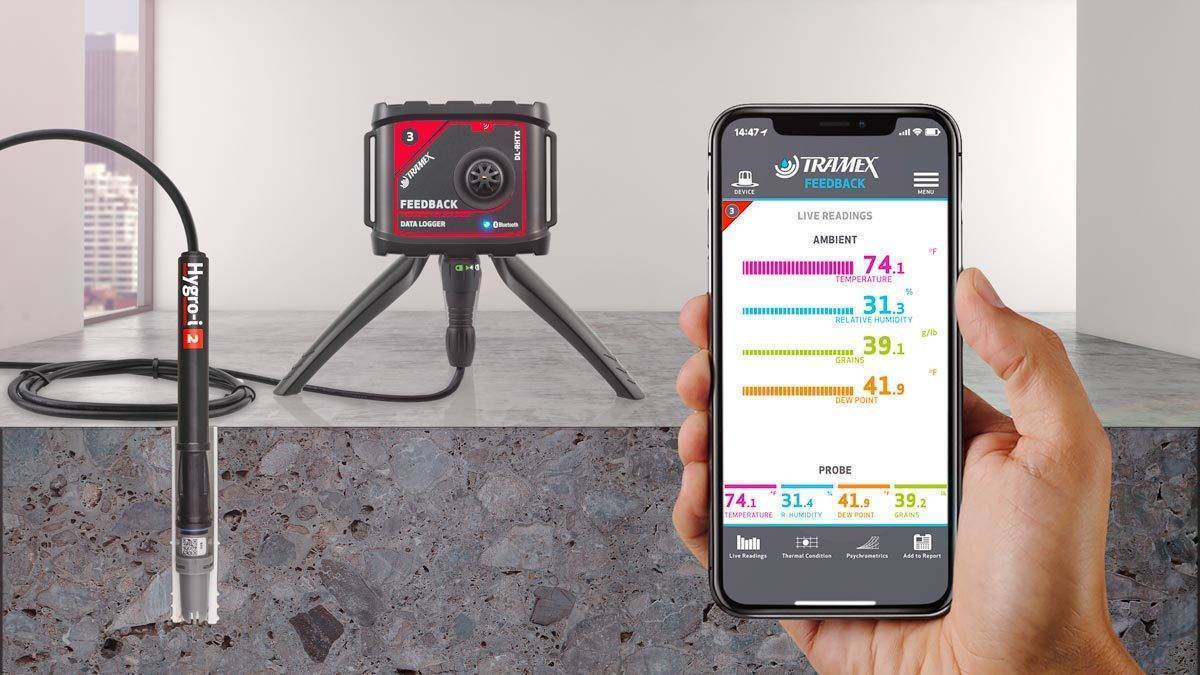

Reusable Hygro-i2 probes can be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in the environment and in materials and air spaces. An infrared surface thermometer provides surface temperature and dew point conditions used in conjunction with the CMEX5 hygrometer.

Moisture mapping

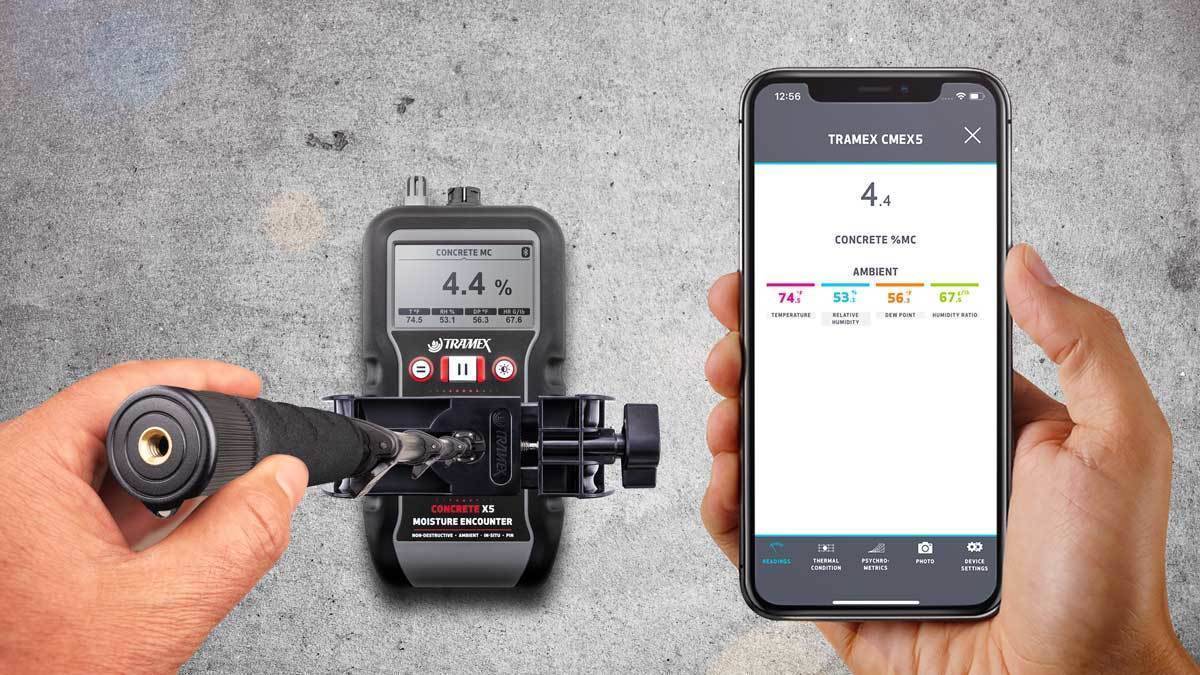

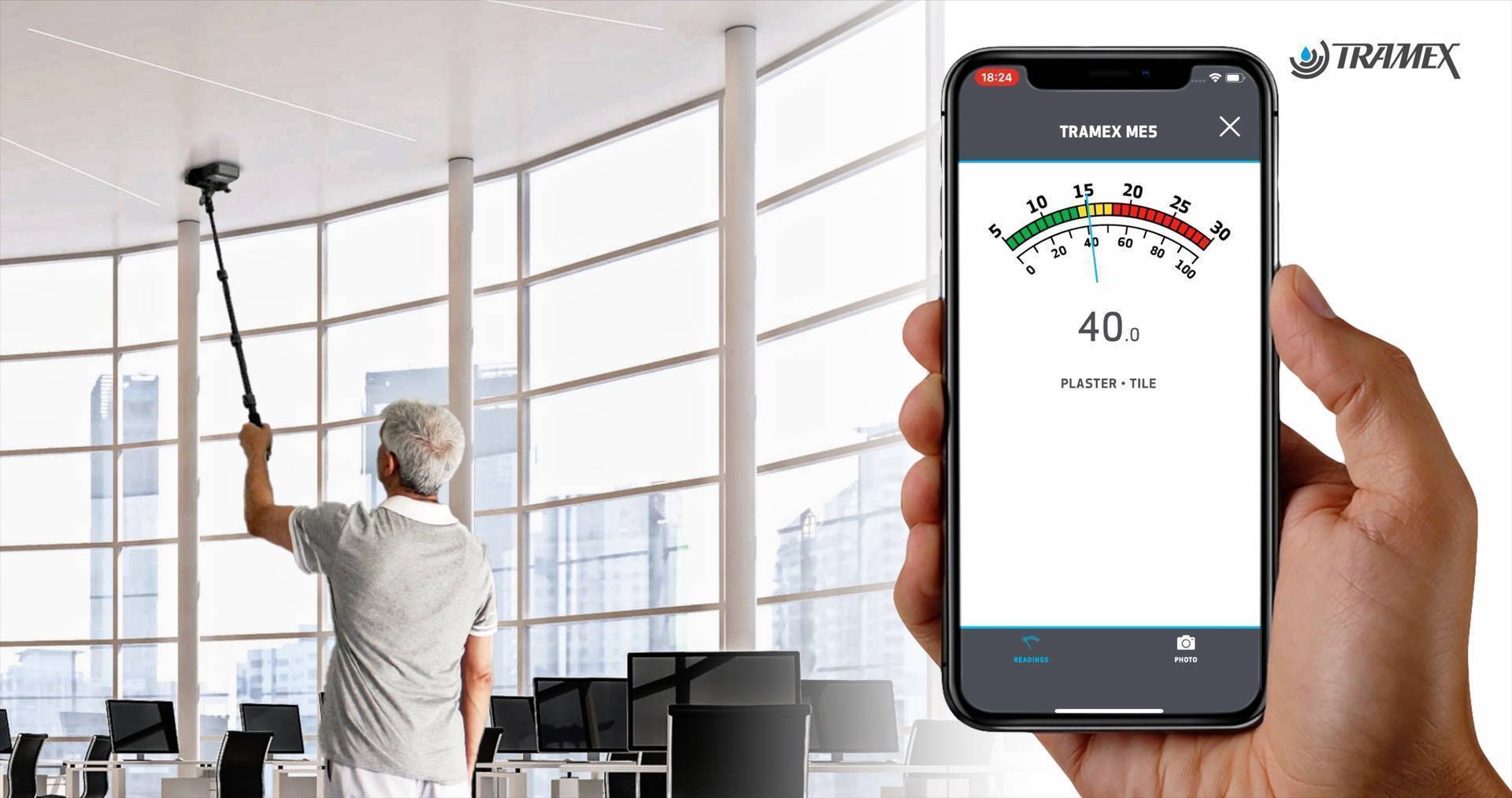

Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.

The Tramex Water Damage Restoration Master Kit comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.

Product Order Code: WDMK
Non Destructive
Concrete Moisture 0-6.9%
CM Equivalent Concrete 0-4.3
CM Equivalent Anhydrite 0-2.7
Gypsum Reference 0-12
Ambient Relative Humidity, Temperature, Dew Point, g/kg
In Situ Relative Humidity, Temperature, Dew Point, g/kg
4mm Relative Humidity, Temperature, Dew Point, g/kg
Dual Depth
Wood Moisture Content 5-30%
Comparative 0-100
Wood Moisture Equivalent 0-100
Extension Handle included
Free Accompanying App
ASTM F2659
ASTM F2170
British Standard 8201
British Standard 8203
British Standard 5325

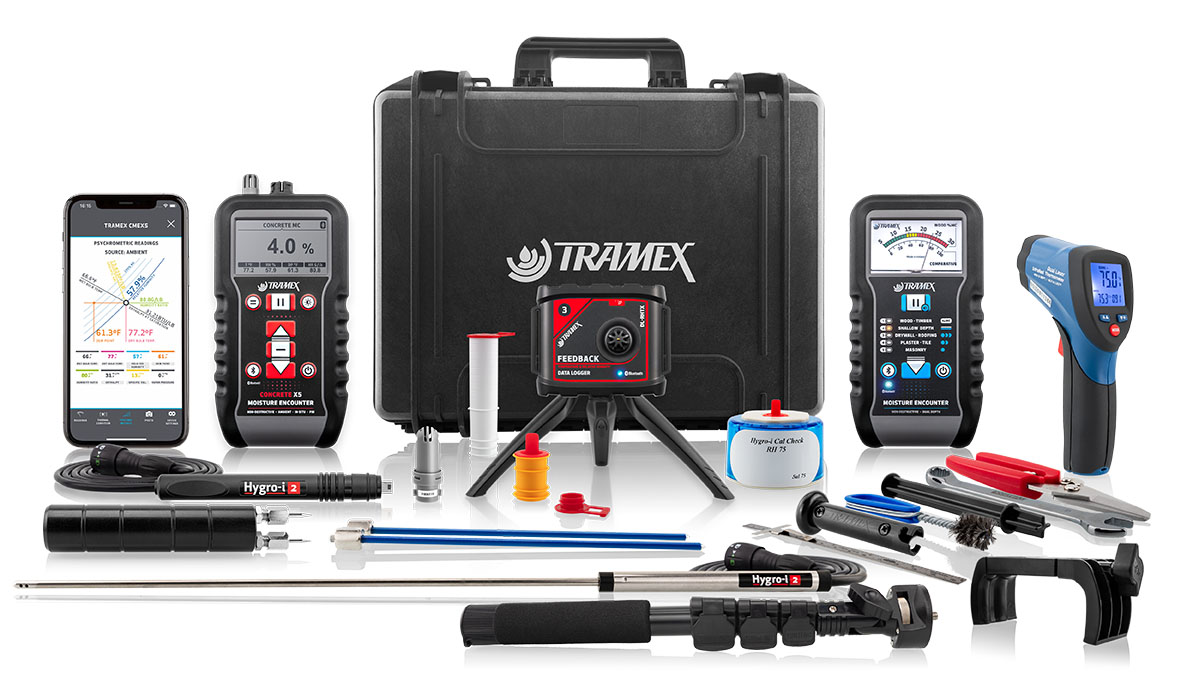

KIT CONTENTS:

• Concrete Moisture Encounter X5 – CMEX5.
• Moisture Encounter 5 – ME5.
• Feedback Datalogger – DL-RHTX.
• App available for Android and iOS (phone not included).
• Heavy-duty pin-type wood probe.
• 7.8″ (200mm) insulated pins for in-depth penetration.
• 10″ (260mm) Narrow Wand Relative Humidity Probe.
• 1 x Hygro-i2 ® Relative Humidity probe.
• Hole liners.
• Calibration Check Salts.
• Infrared Thermometer.
• Extension Handle
