TRAMEX - BSMK Building Survey Master Kit – Deep Moisture Inspection System

TRAMEX – BSMK Building Survey Master Kit – Deep Moisture Inspection System

$5,360.00

TRAMEX – BSMK Building Survey Master Kit – Deep Moisture Inspection System The Tramex BSMK Building Survey Master Kit is a complete professional solution for non-destructive moisture testing and humidity inspection across a wide range of building materials and air spaces. Ideal for surveying drywall, roofing, plaster, wood, concrete, tiles, laminates, and insulation, this kit […]

Out of stock

SKU: TLS-MDD1-TRA-0003
Category:
Tags: , , , , , , , , ,

Description

TRAMEX – BSMK Building Survey Master Kit – Deep Moisture Inspection System

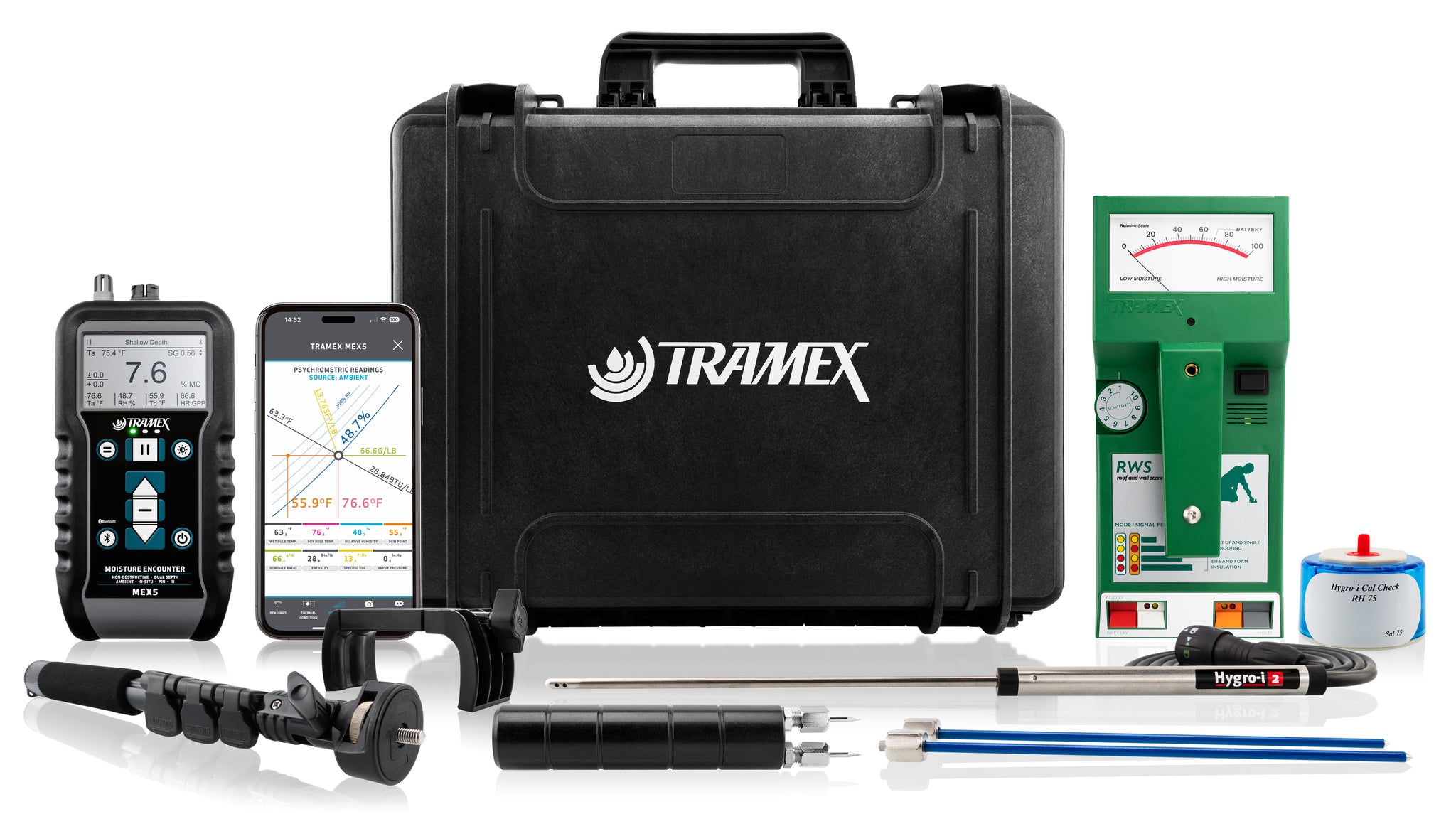

The Tramex BSMK Building Survey Master Kit is a complete professional solution for non-destructive moisture testing and humidity inspection across a wide range of building materials and air spaces. Ideal for surveying drywall, roofing, plaster, wood, concrete, tiles, laminates, and insulation, this kit includes the high-performance Roof and Wall Scanner (RWS) and the versatile MEX5 moisture meter for both surface and in-depth analysis.

The RWS scanner evaluates deep moisture conditions in roofs and walls using multiple sensitivity modes, while the MEX5 offers dual-depth readings, built-in hygrometry, an infrared thermometer, and external pin/RH probes. The included 200mm insulated pins and RH wand enable advanced diagnostics in hidden cavities. Bluetooth support allows real-time data mapping, logging, and mobile reporting via the Tramex Meters App. Comes securely packed in a heavy-duty, foam-lined case for field durability and portability.

Key Features:

  • Kit Code: BSMK

  • RWS Scanner for deep roof & wall moisture evaluation

  • MEX5 Meter for ambient conditions, pin and non-invasive moisture readings

  • 200mm insulated pins for deep probing

  • Short narrow RH wand probe for in-situ testing

  • Calibration salts included for RH accuracy checks

  • Dual-extension handles for ease of use in hard-to-reach areas

  • Bluetooth App for live readings, moisture mapping & geo-tagged reports

  • Heavy-duty carry case with die-cut foam for protection

Specifications:

Roof and Wall Scanner – RWS:

  • Size: 125mm × 275mm × 75mm

  • Weight: 853g

  • Power: 9V PP3 Battery (included)

  • Display: Analog

  • Depth of Penetration: 100mm

  • Sensitivity Ranges:

    • Roofing: High & Low

    • EIFS/Foam Roof: High & Low

  • Limitations:

    • Not suitable for conductive roofing (e.g., EPDM, Butyl rubber)

    • Hard coat stucco or metal lath interference

  • Accessories: Leather case, telescopic handle

Moisture Encounter MEX5:

  • Size: 180mm × 85mm × 40mm

  • Weight: 500g

  • Power: 2 × AALR6 alkaline batteries (included)

  • Display: Digital 58mm × 35mm

  • Penetration Depth:

    • Shallow: up to 9mm

    • Deep: up to 30mm

  • Moisture Ranges:

    • NDT Wood: 0–30%

    • Comparative (Building Materials): 0–100

    • Pin MC (Wood): 6–50%

    • Pin MC (Drywall): 0–8.5%

    • RH (with probe): 0–99% ±2% @ 25°C

RH Sensor Specs:

  • Range: 0–100% RH

  • Accuracy: ±1.5% (0–80%), ±2.0% (80–99%)

  • Resolution: 0.1%

  • Drift: <0.25% RH/year

Temperature Sensor Specs:

  • Range: –40°C to 125°C

  • Accuracy: ±0.1°C (20°C to 60°C)

  • Drift: <0.03°C/year

  • Protection: PTFE membrane

Kit Specifications:

  • Size: 52cm × 40cm × 15cm

  • Weight: 4.51kg

  • Power: 2 × AALR6 alkaline + 1 × 9V PP3 battery (included)
